Tiny House/Home Trailers
ROVER Approved Tiny House Trailers
We are now offering tiny house/home trailers/chassis’ that are ROVER Approved and comply to all relevant ADR’s.

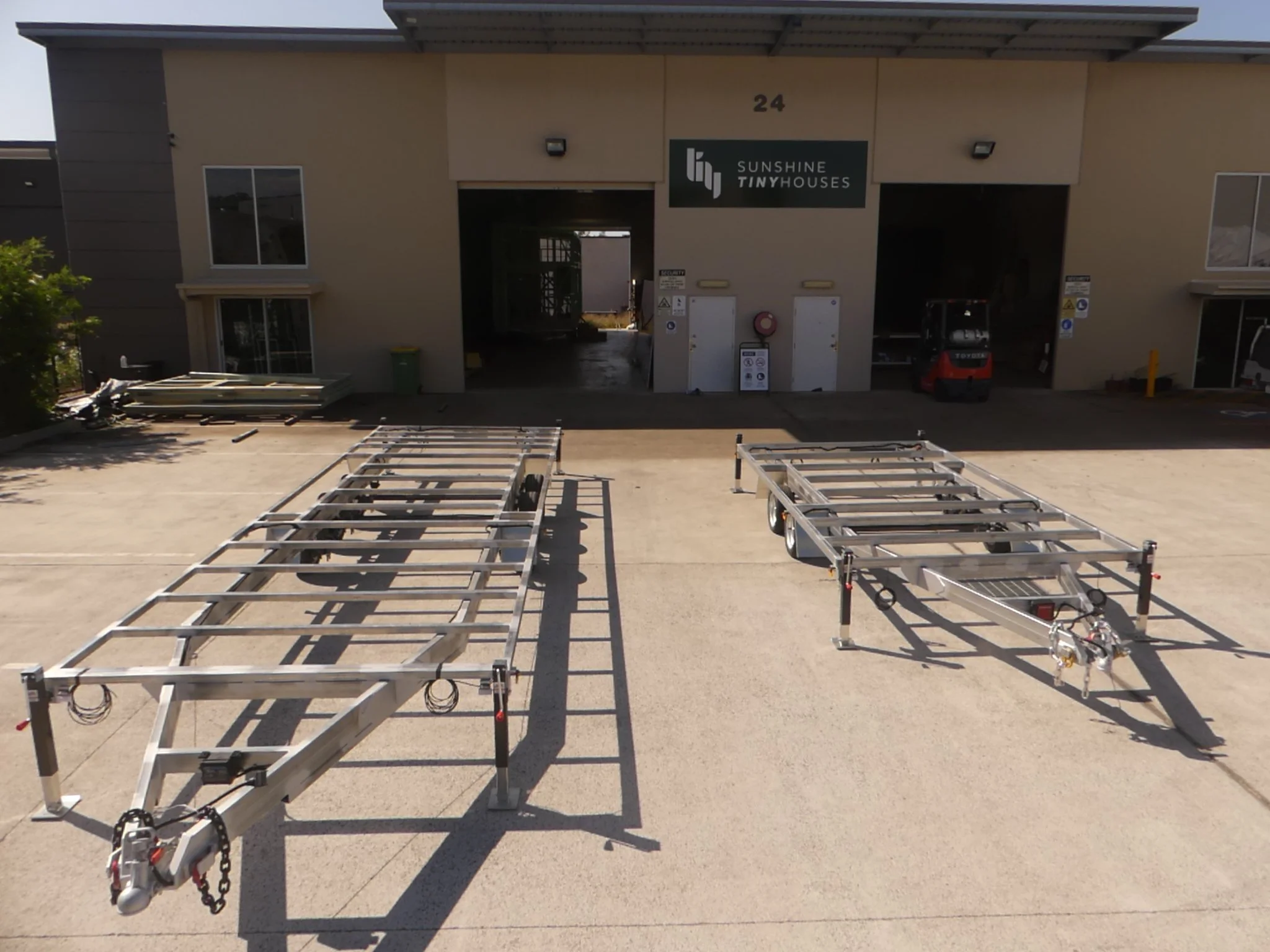

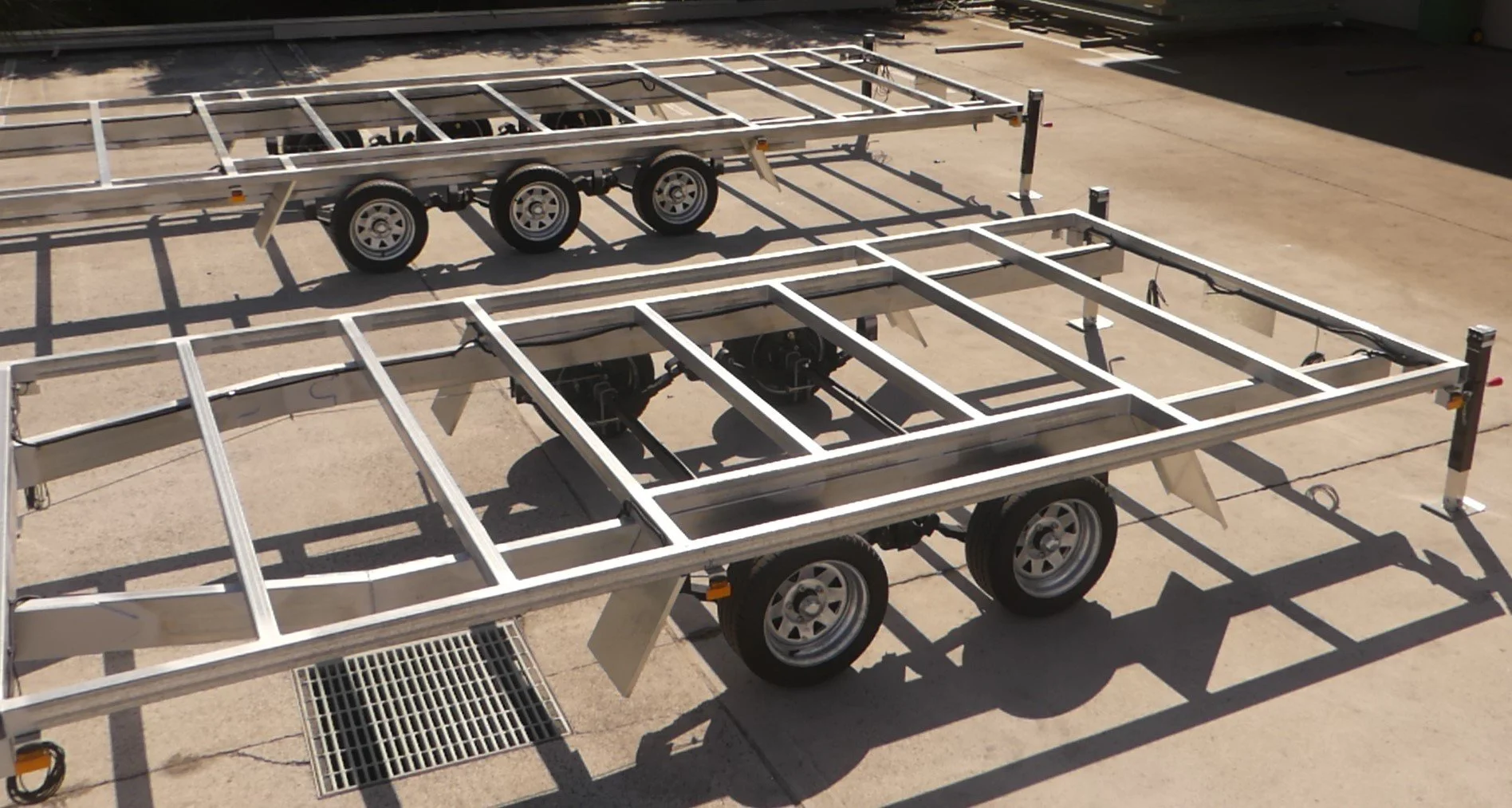

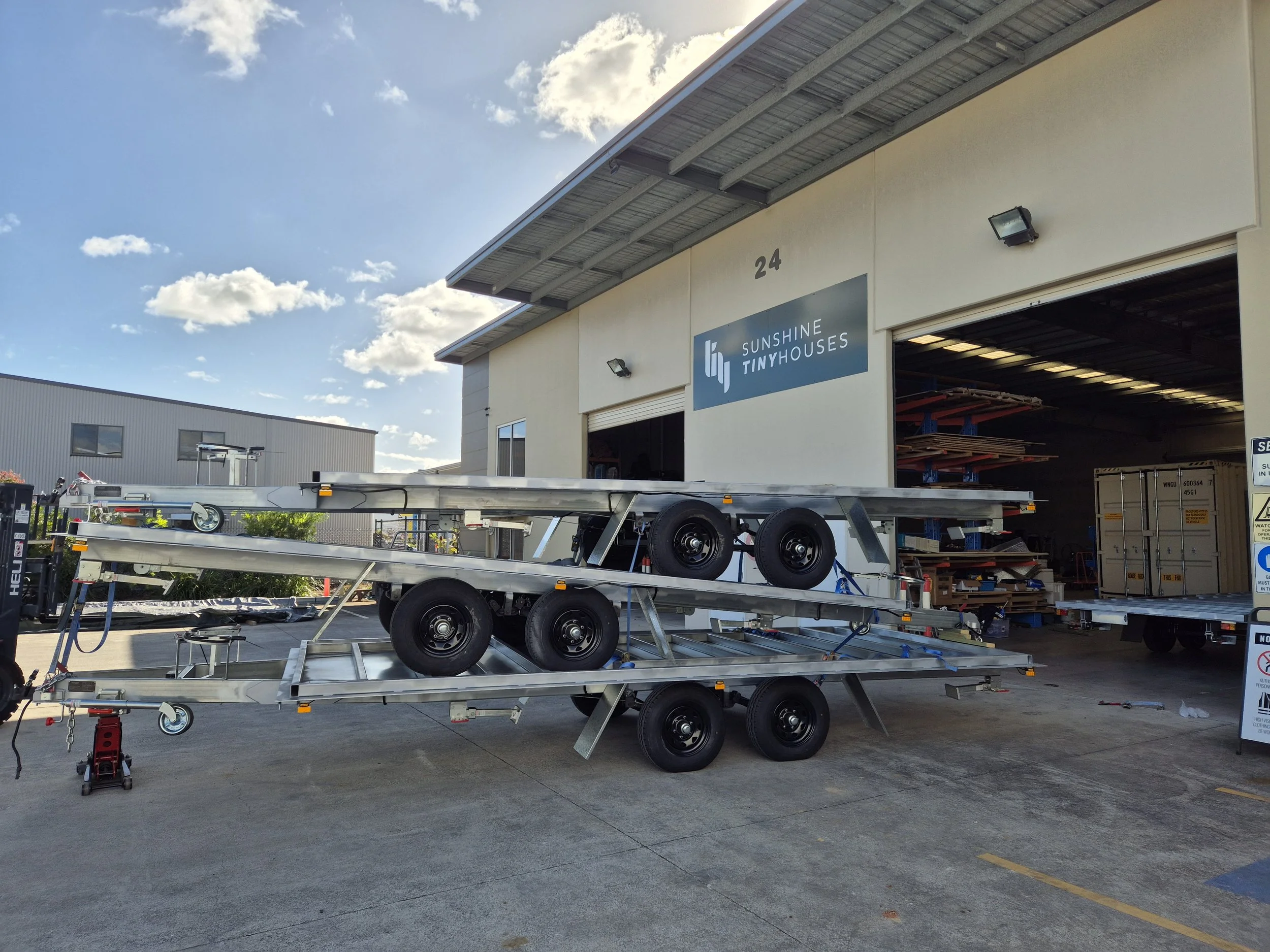

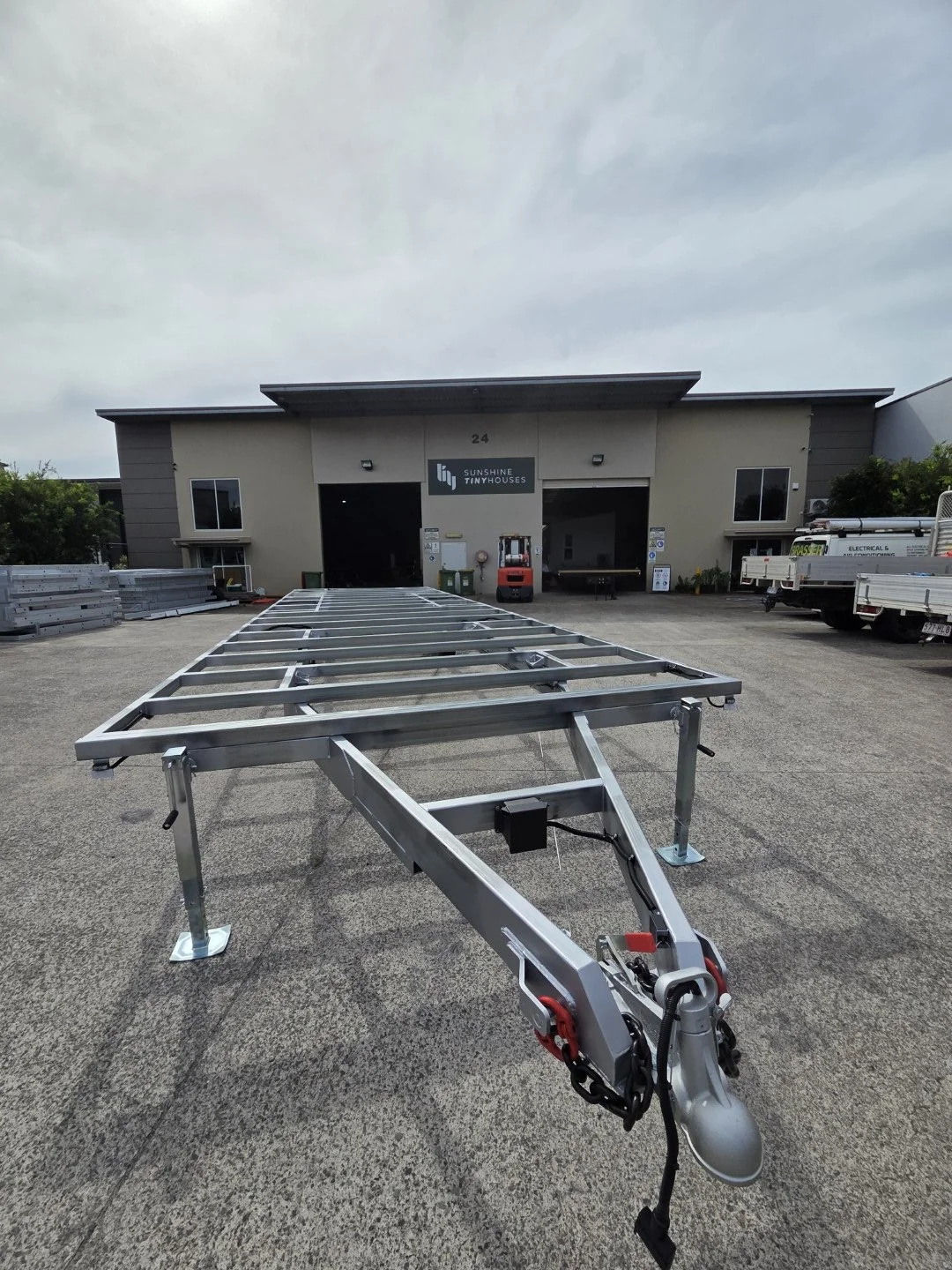

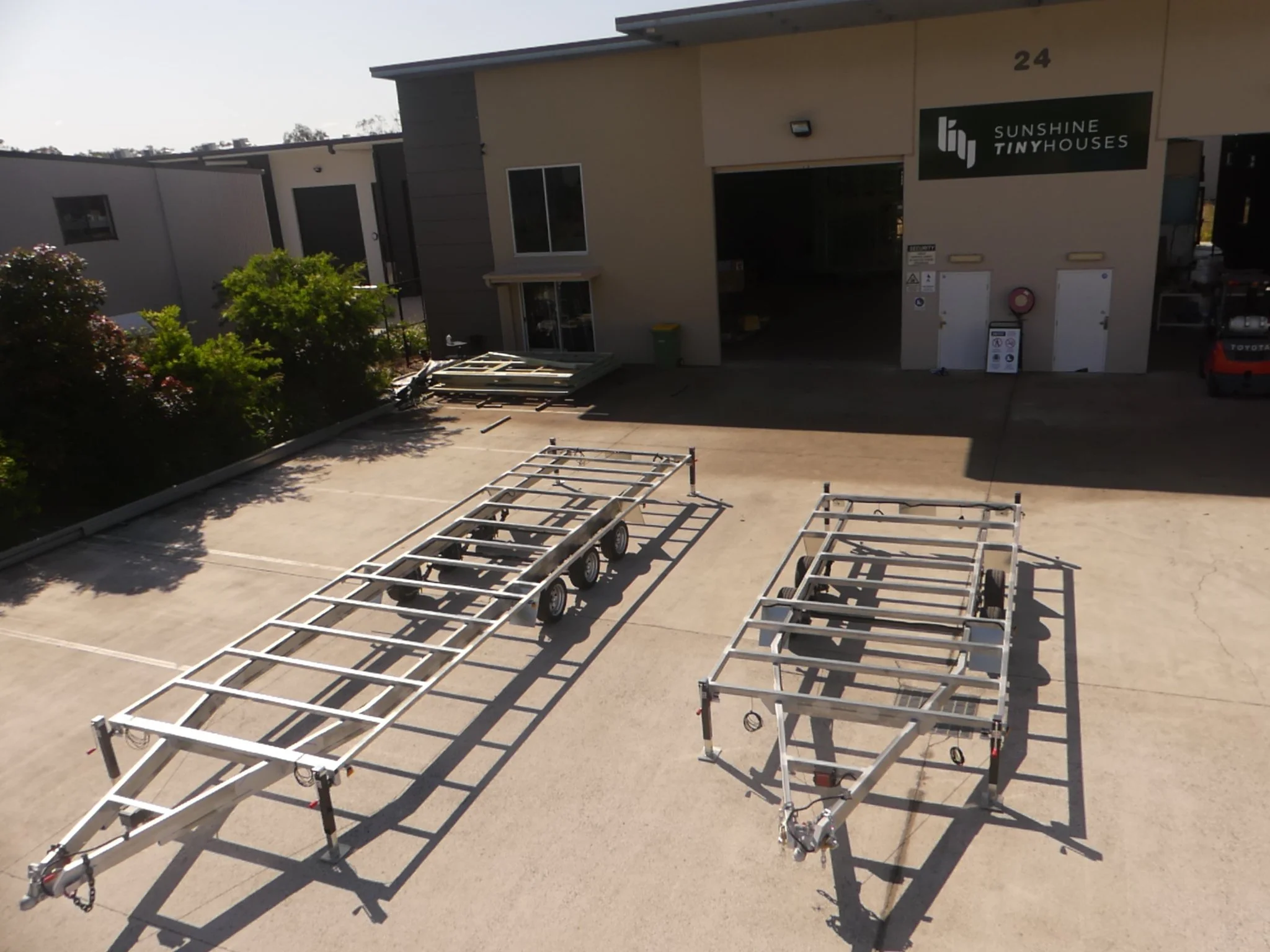

Dual-Axle and Tri-Axle Options

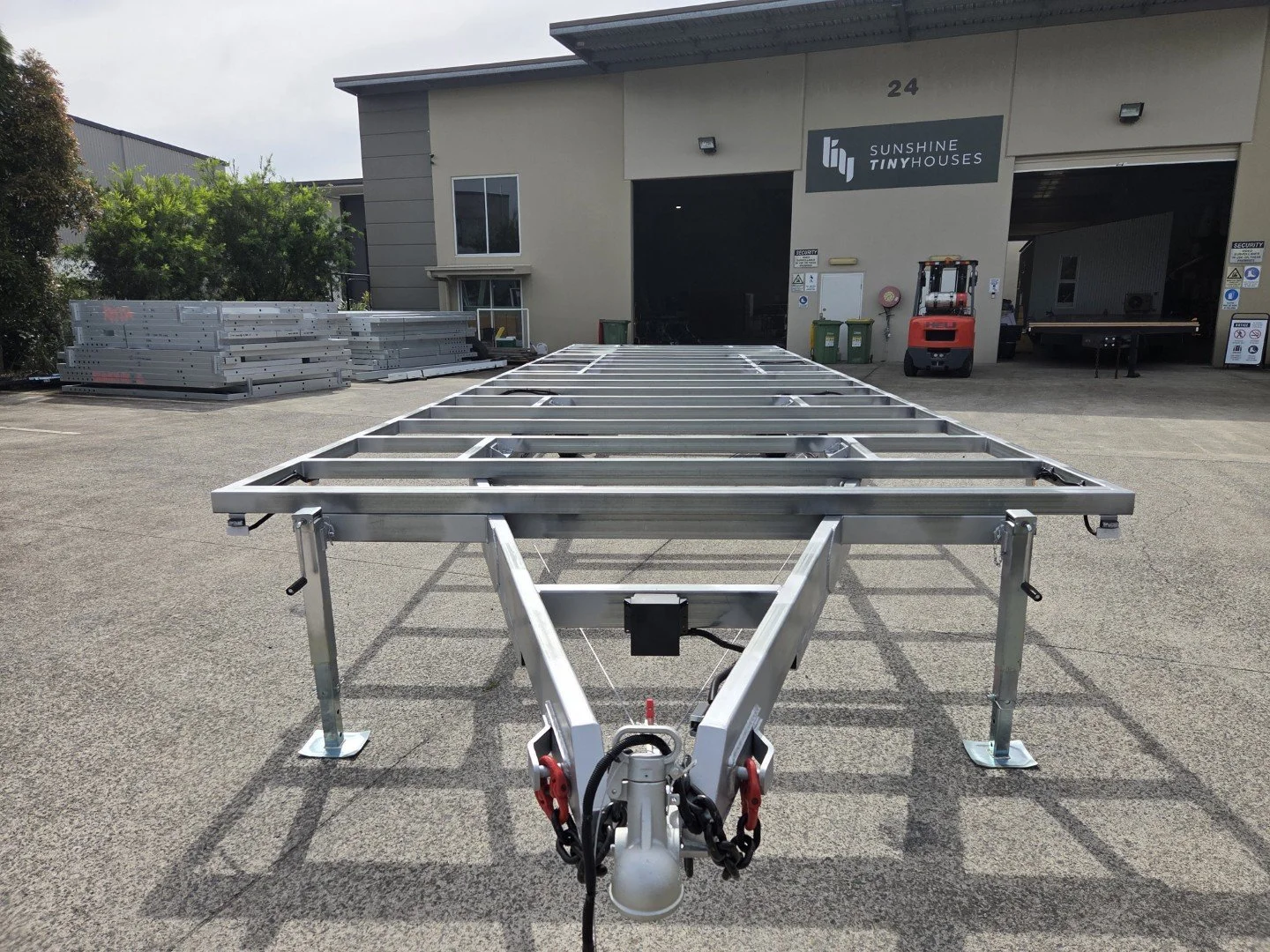

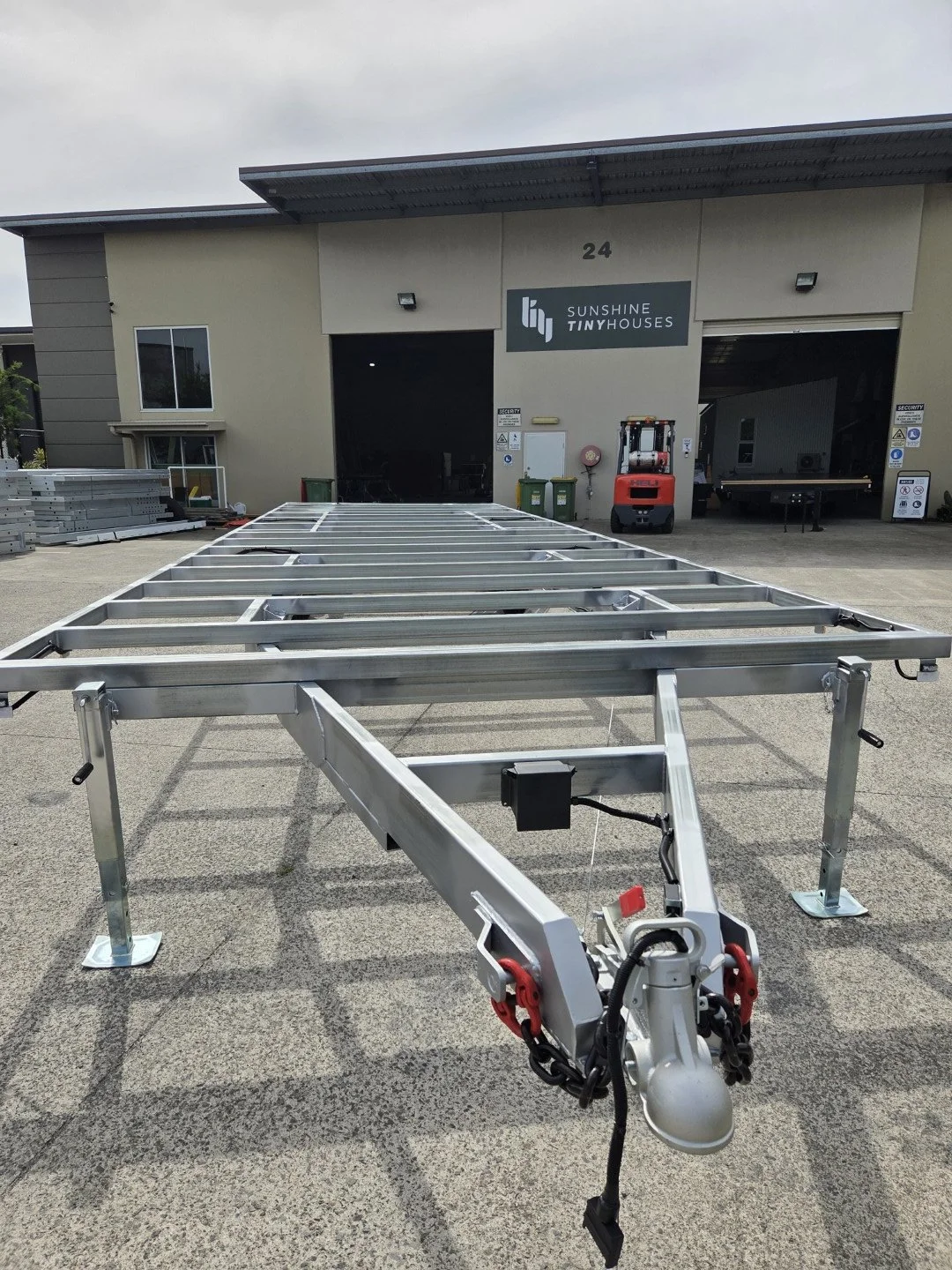

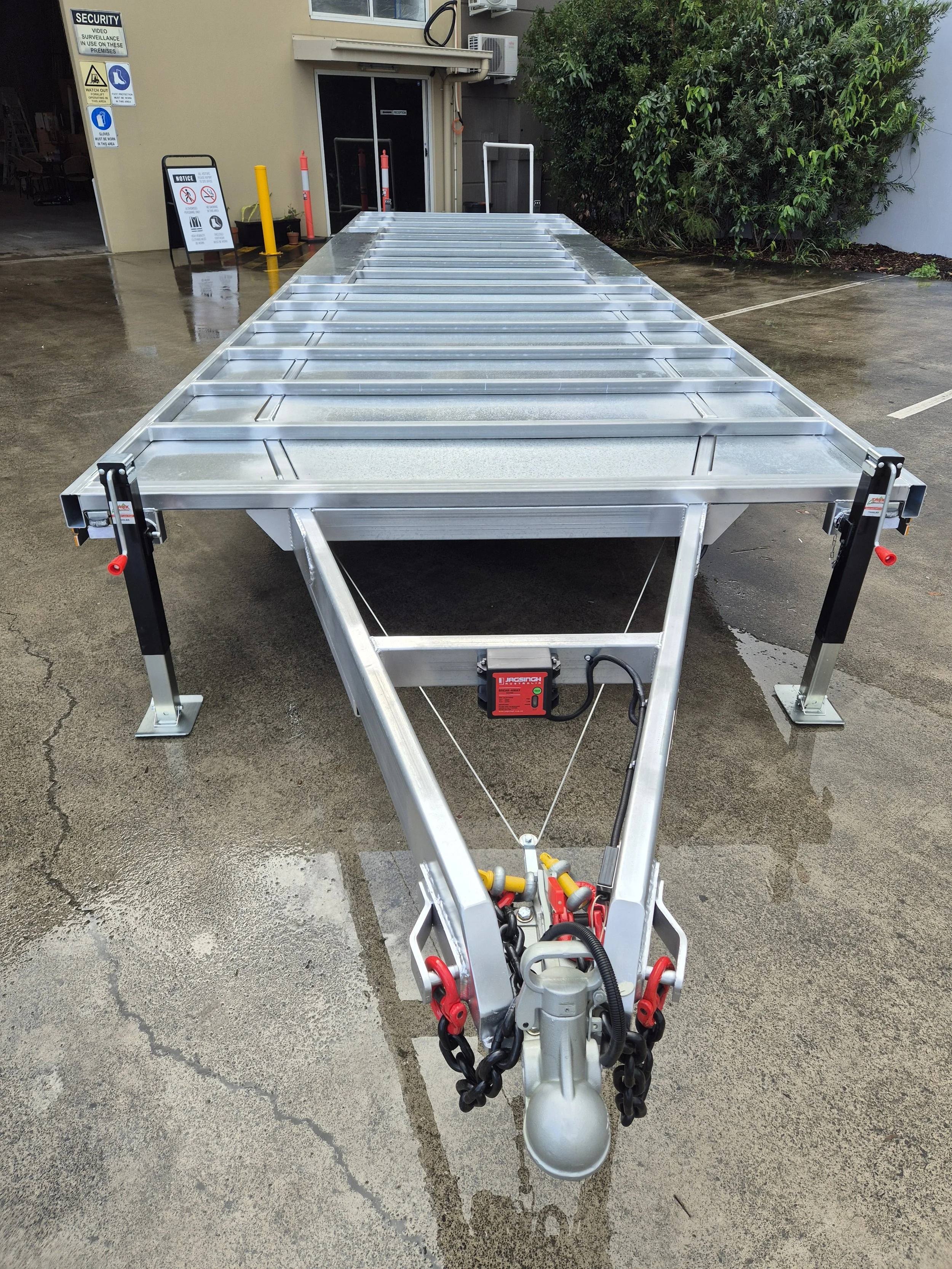

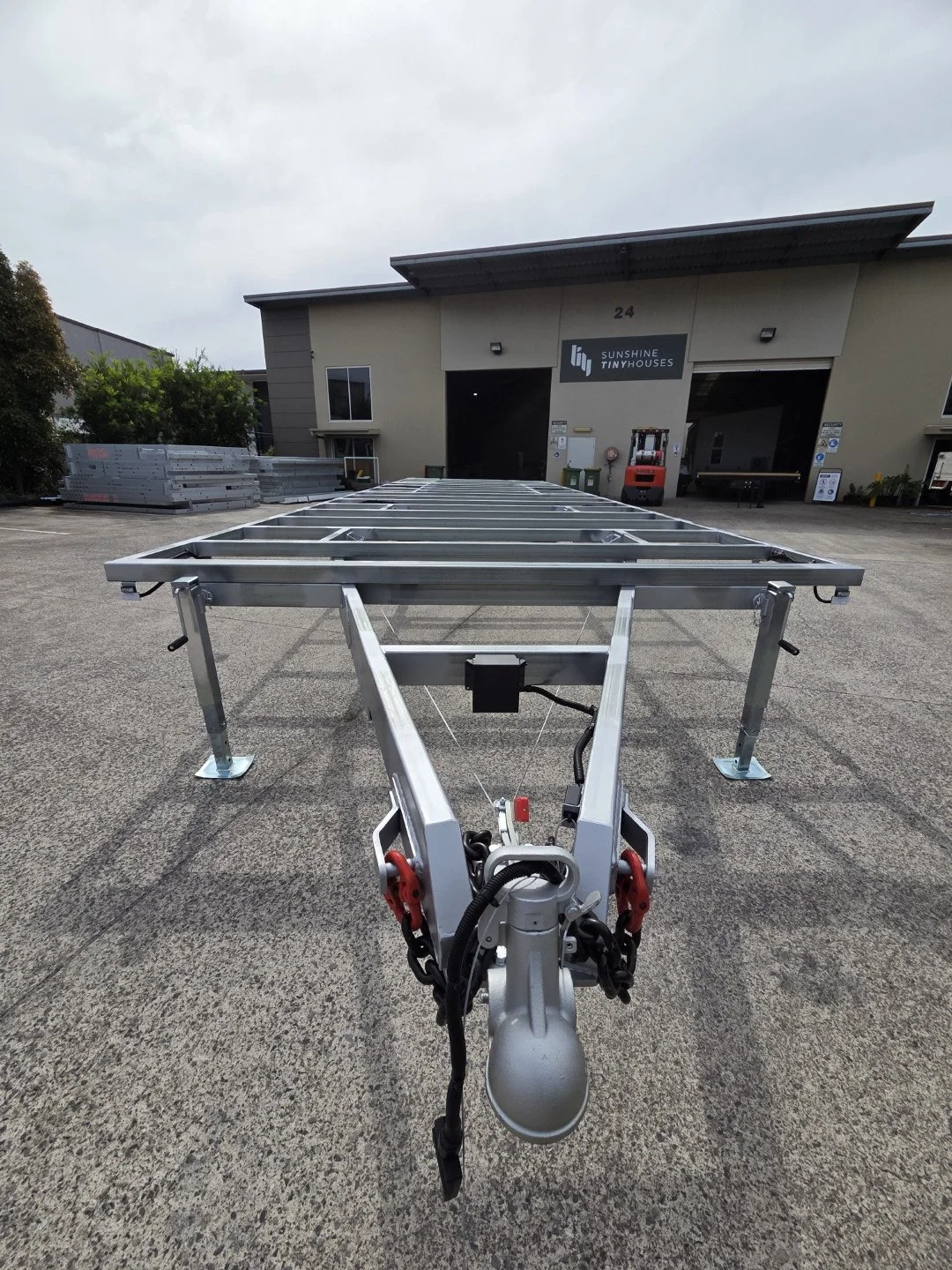

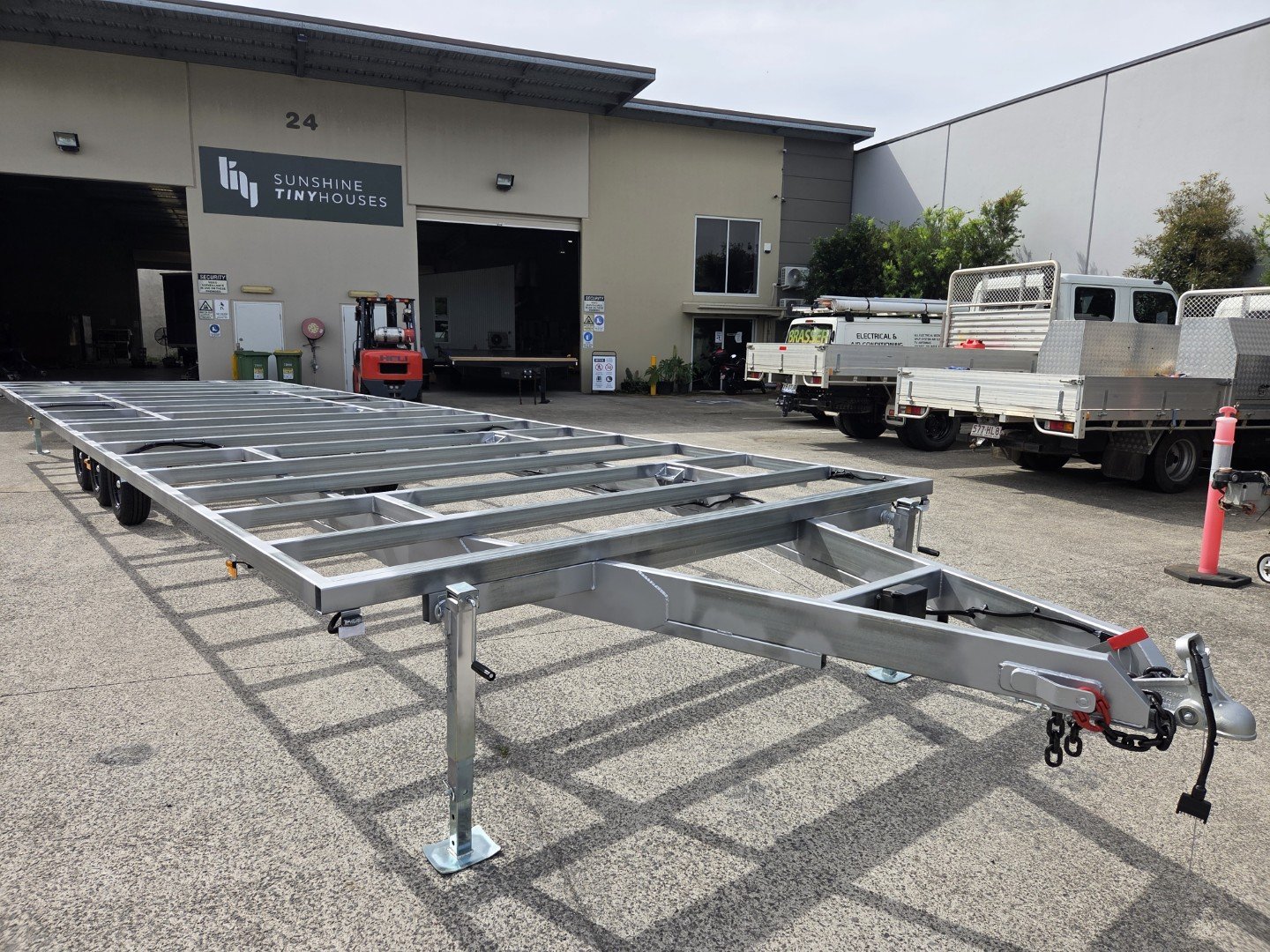

Dual-axle (3.2Tonne GVM) and Tri-axle (4.5Tonne GVM) Trailers constructed from Duragal available in two height options:
650mm - suitable for flushing, incinerating and self contained composting toilets. Can be used with through floor composting toilets with underfloor storage tanks in certain circumstances if toilet location is planned accordingly. The most common through floor systems require 500mm height clearance ie. Clivus Multrum LP and GreenLoo GL90
750mm - suitable for through floor composting toilets with underfloor storage tank ie. Clivus Multrum LP and GreenLoo GL90 (both require 500mm clearance)
Tiny trailer Standard Inclusions
2400mm Width and Varying Lengths up to 9.0m (Oversize builds available ie. 2.8m, 3.0m and up to 3.8m wide but these are unable to be registered or made to comply to Australian Design Rules)

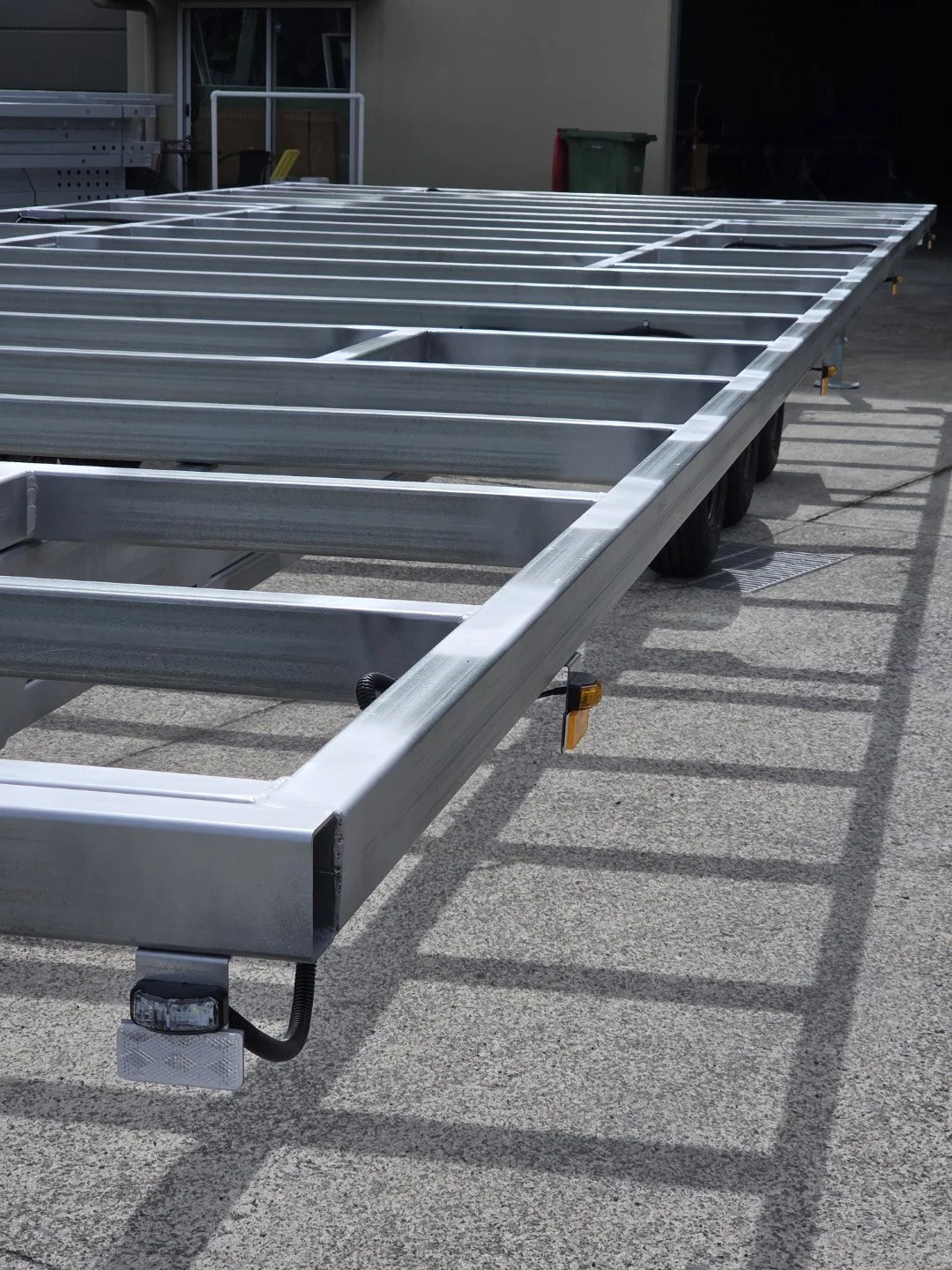

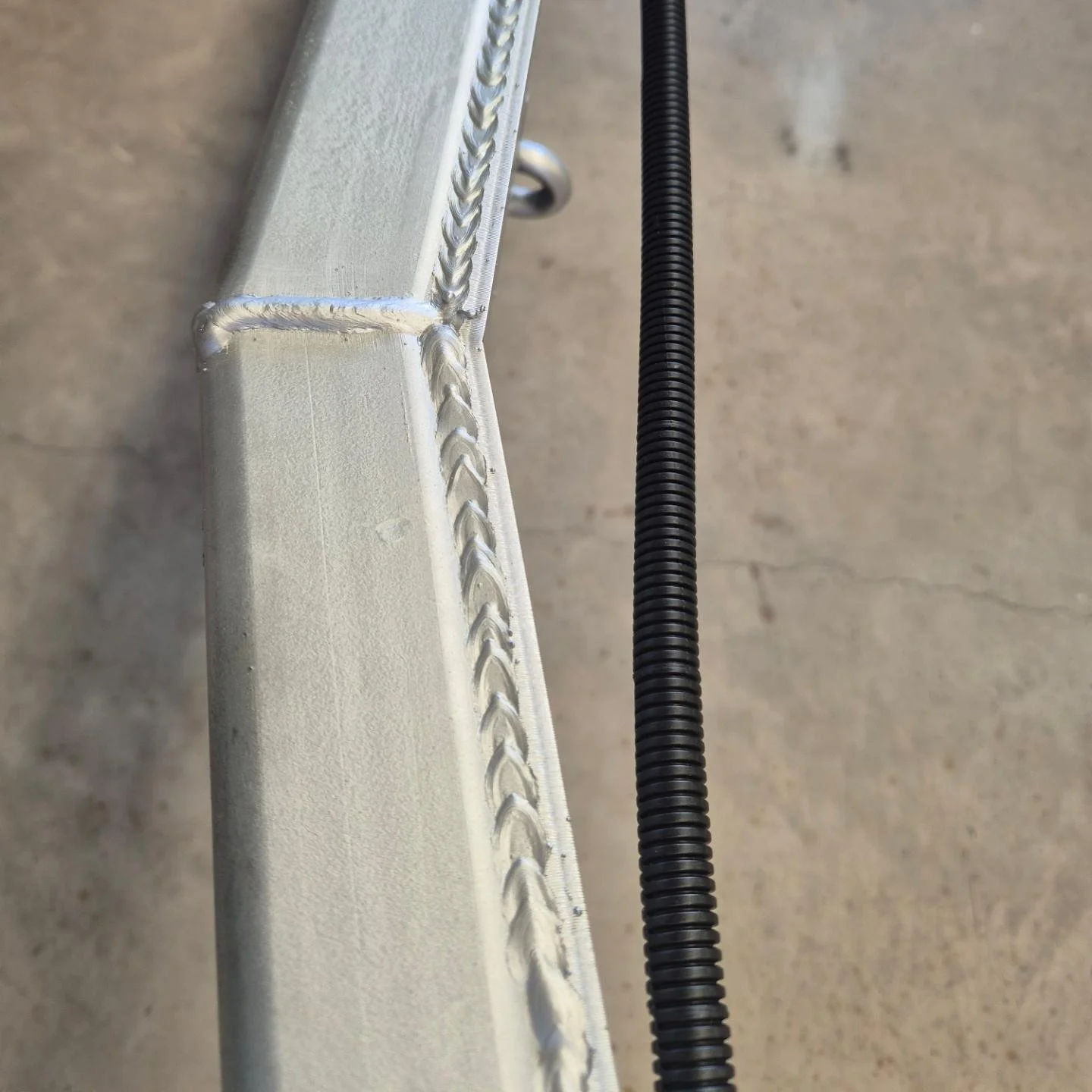

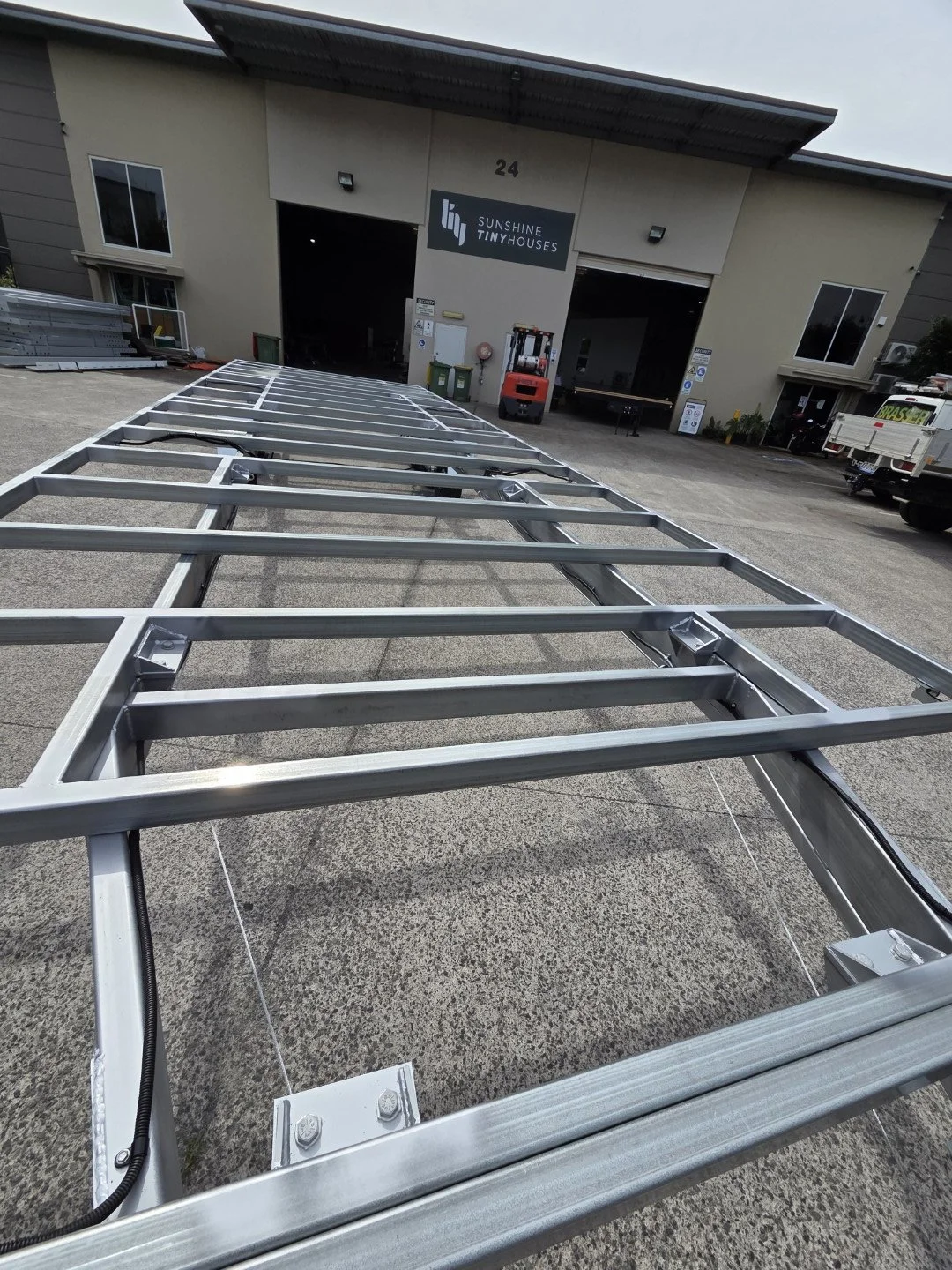

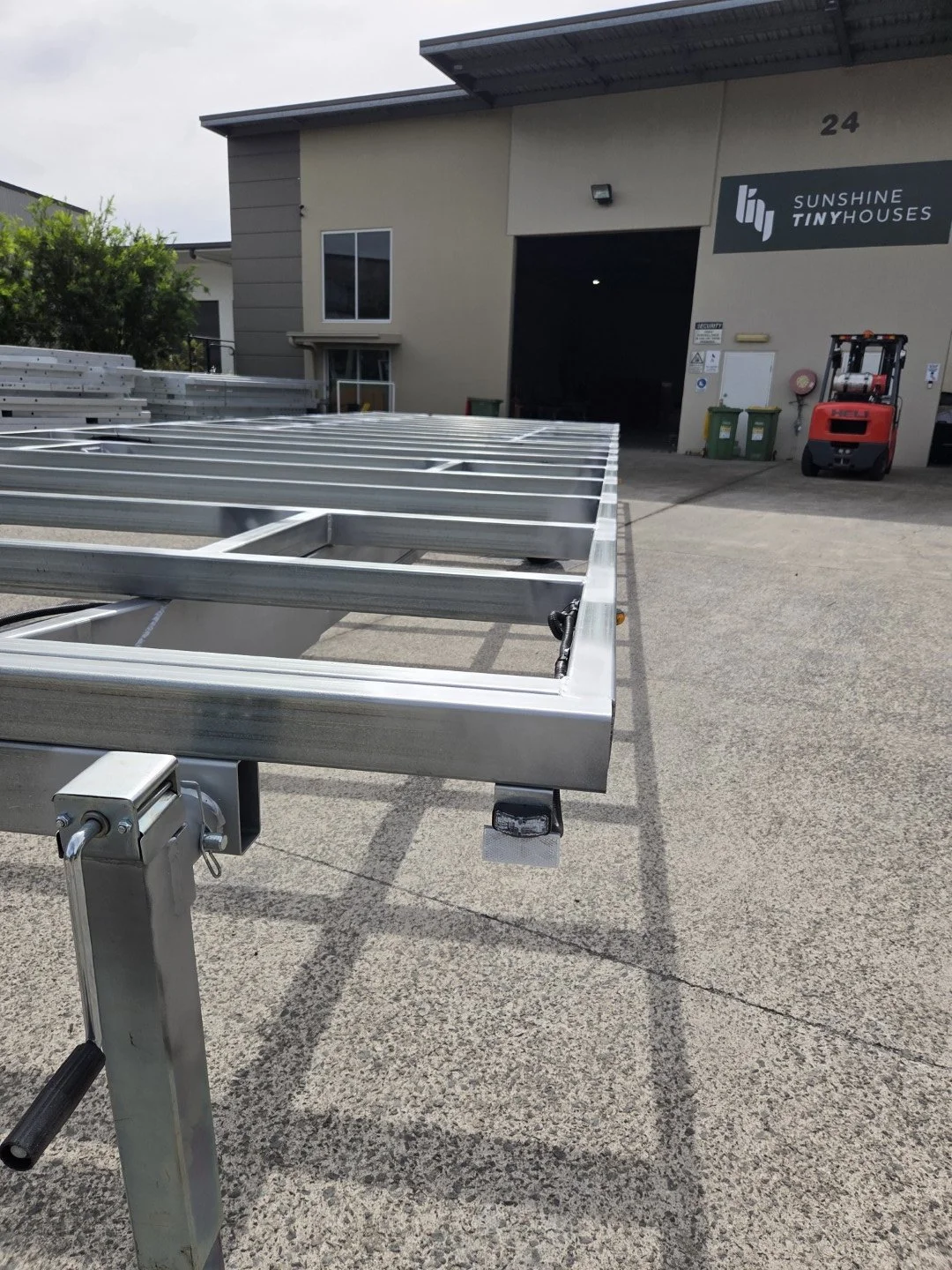

Duragal Construction
3.2Tonne GVM on Dual-Axle and 4.5Tonne GVM on Tri-Axle Models
Vin Plate with Vin Number

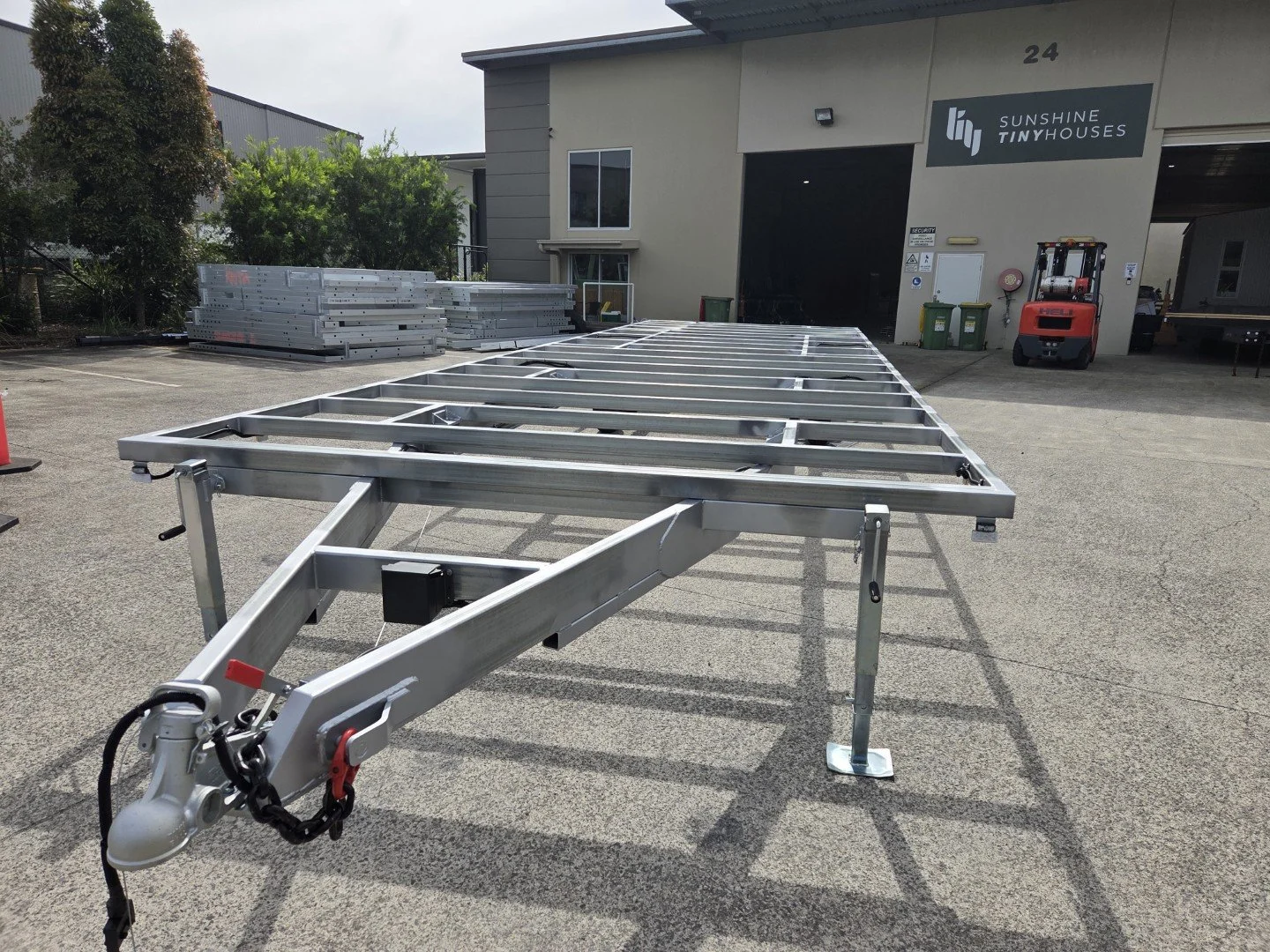

50mm Ball Hitch with Handbrake on Dual-axle and 70mm Ball Hitch with Handbrake on Tri-axle
Low Profile 195/50R13C Tyres on 13” Wheels with 850kg Rating per wheel/tyre

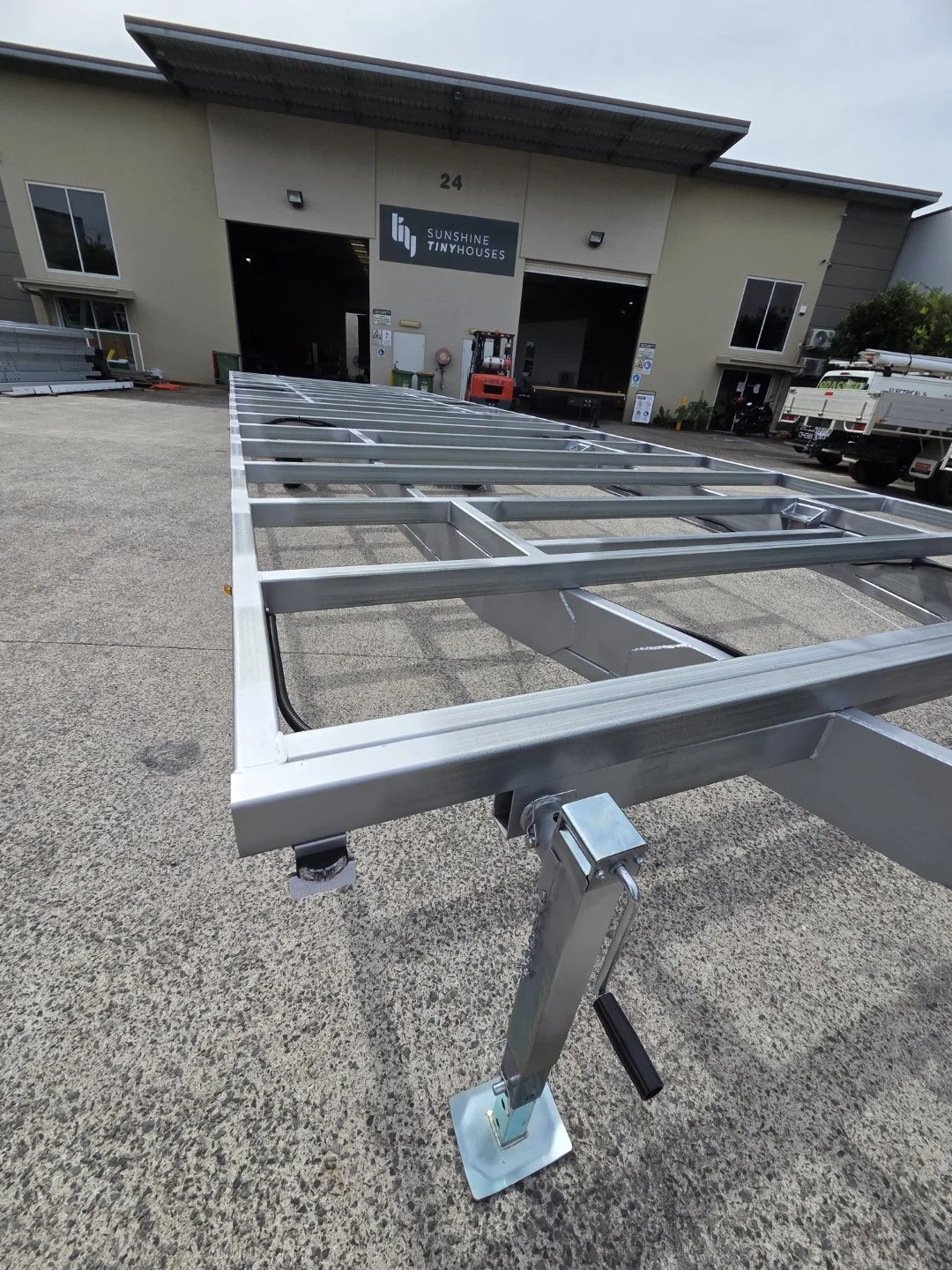

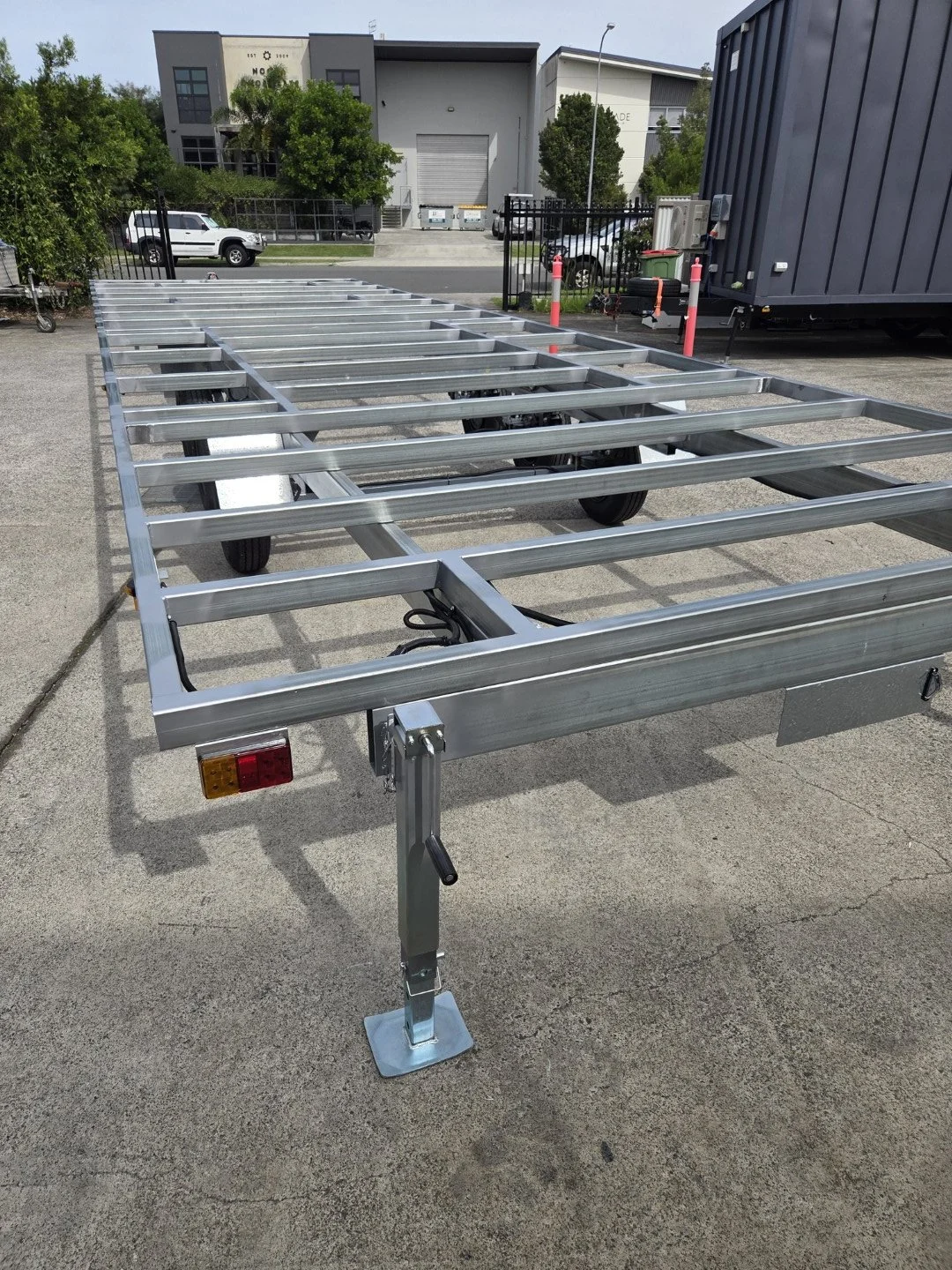

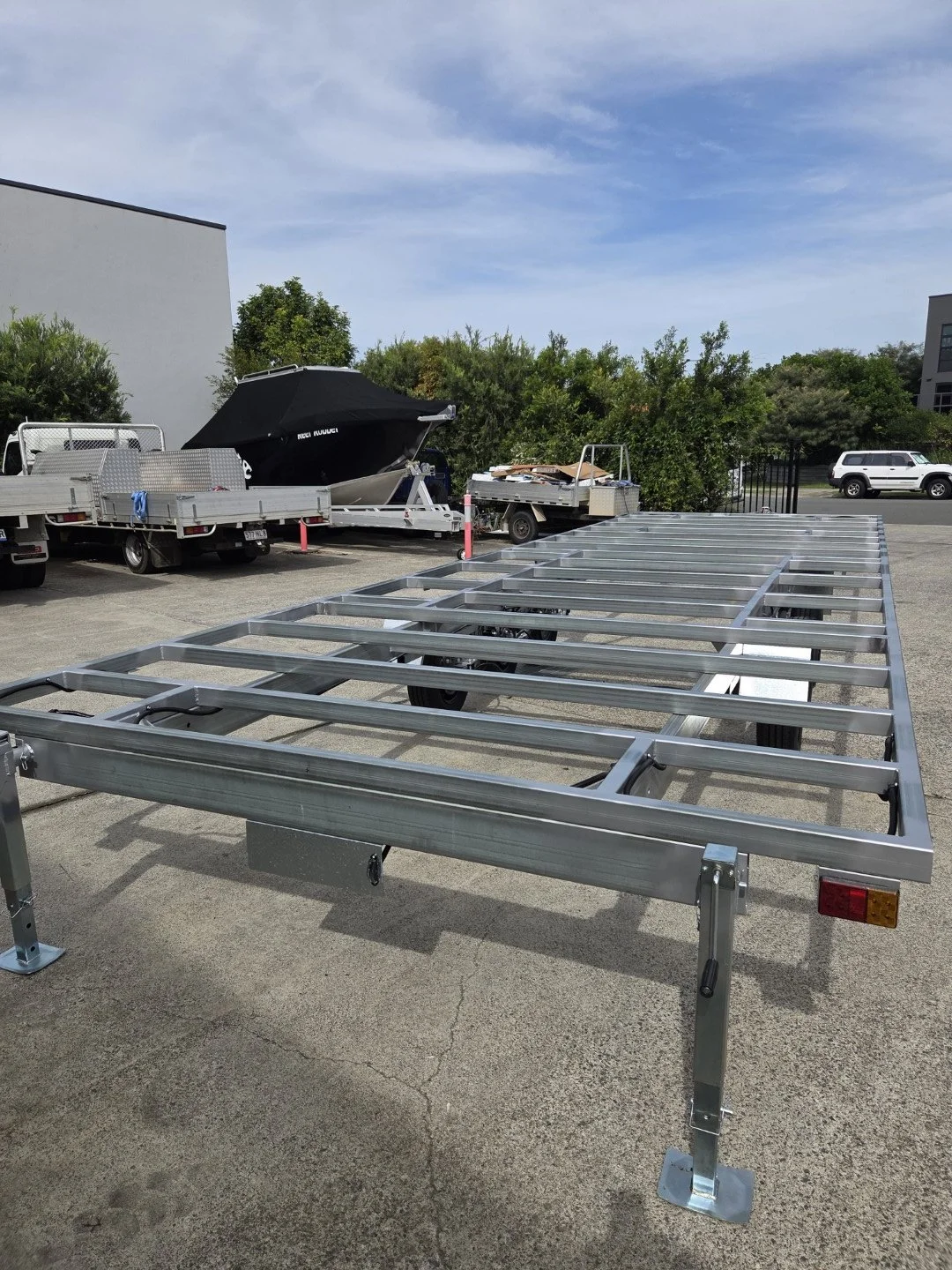

4 x Heavy Duty Jack Stands rated to 3175kg each
2 x Safety Chains
Electric Brakes to all axles including breakaway system
7 Pin Flat Plug
Mudguards
LED Tail Lights
Tiny Trailer Upgrades

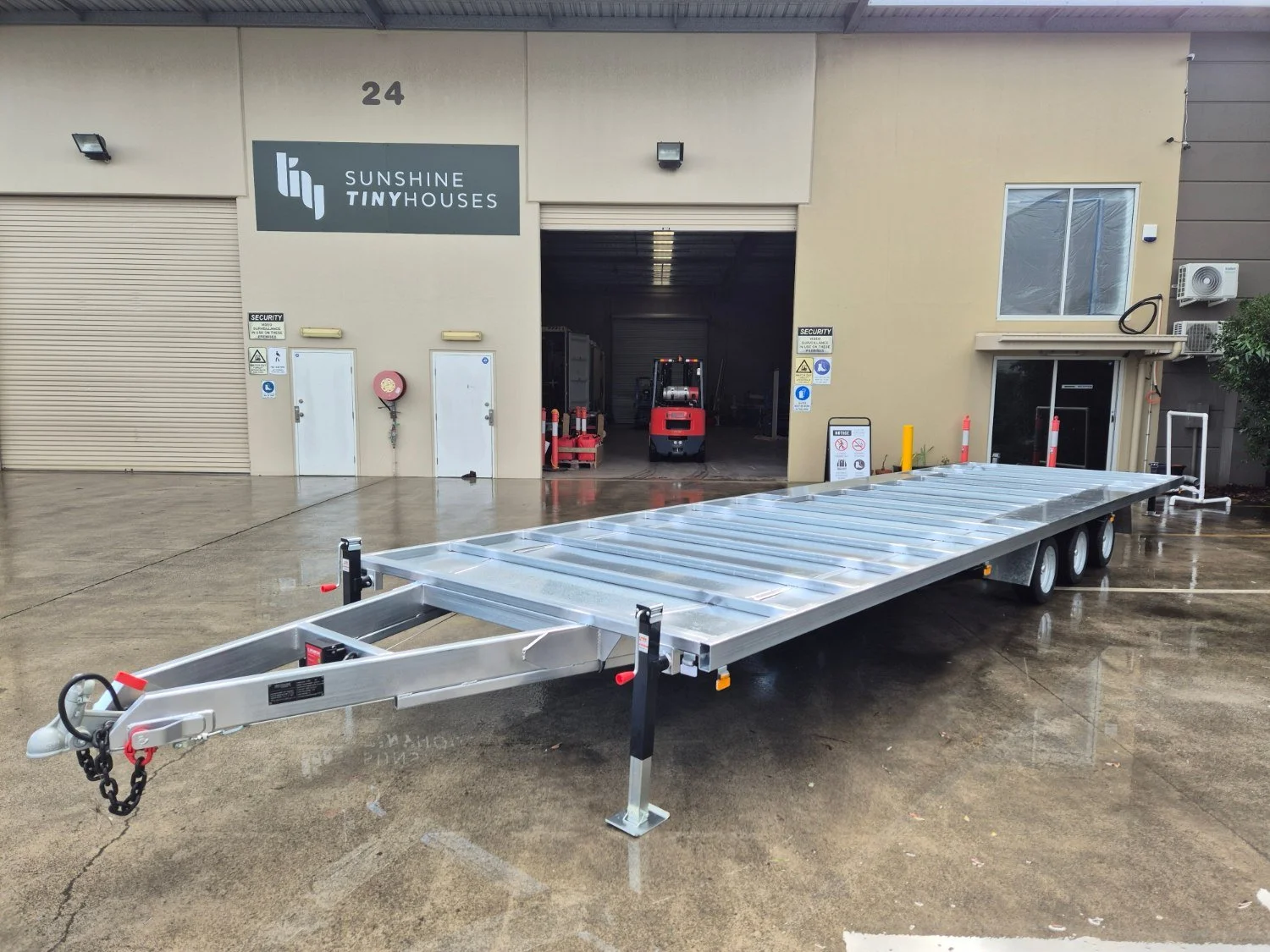

Composite Floor including installation
Dual Axle Tiny Trailer Prices (3.2Tonne GVM)
4.8m x 2.4m Dual-axle $12,100 inc. GST
6.0m x 2.4m Dual-axle $12,650 inc. GST
7.0m x 2.4m Dual-axle $12,980 inc. GST
7.2m x 2.4m Dual-axle $13,090 inc. GST
Tri-Axle Tiny Trailer Prices (4.5Tonne GVM)
6.0 x 2.4m Tri-axle $14,300 inc. GST
7.2 x 2.4m Tri-axle $14,850 inc. GST
8.0 x 2.4m Tri-axle $15,180 inc. GST
8.4 x 2.4m Tri-axle $15,290 inc. GST
9.0 x 2.4m Tri-axle $15,510 inc. GST

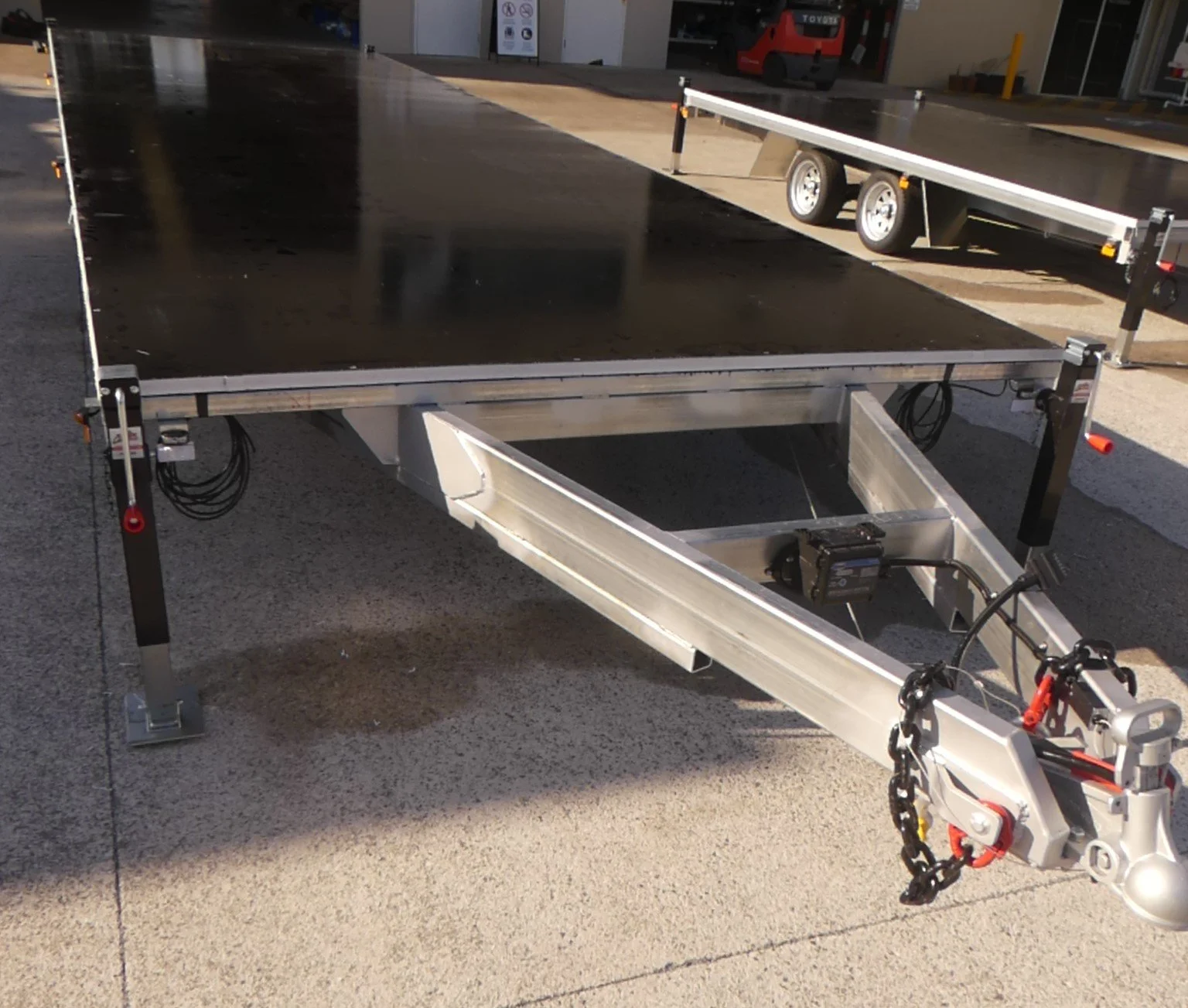

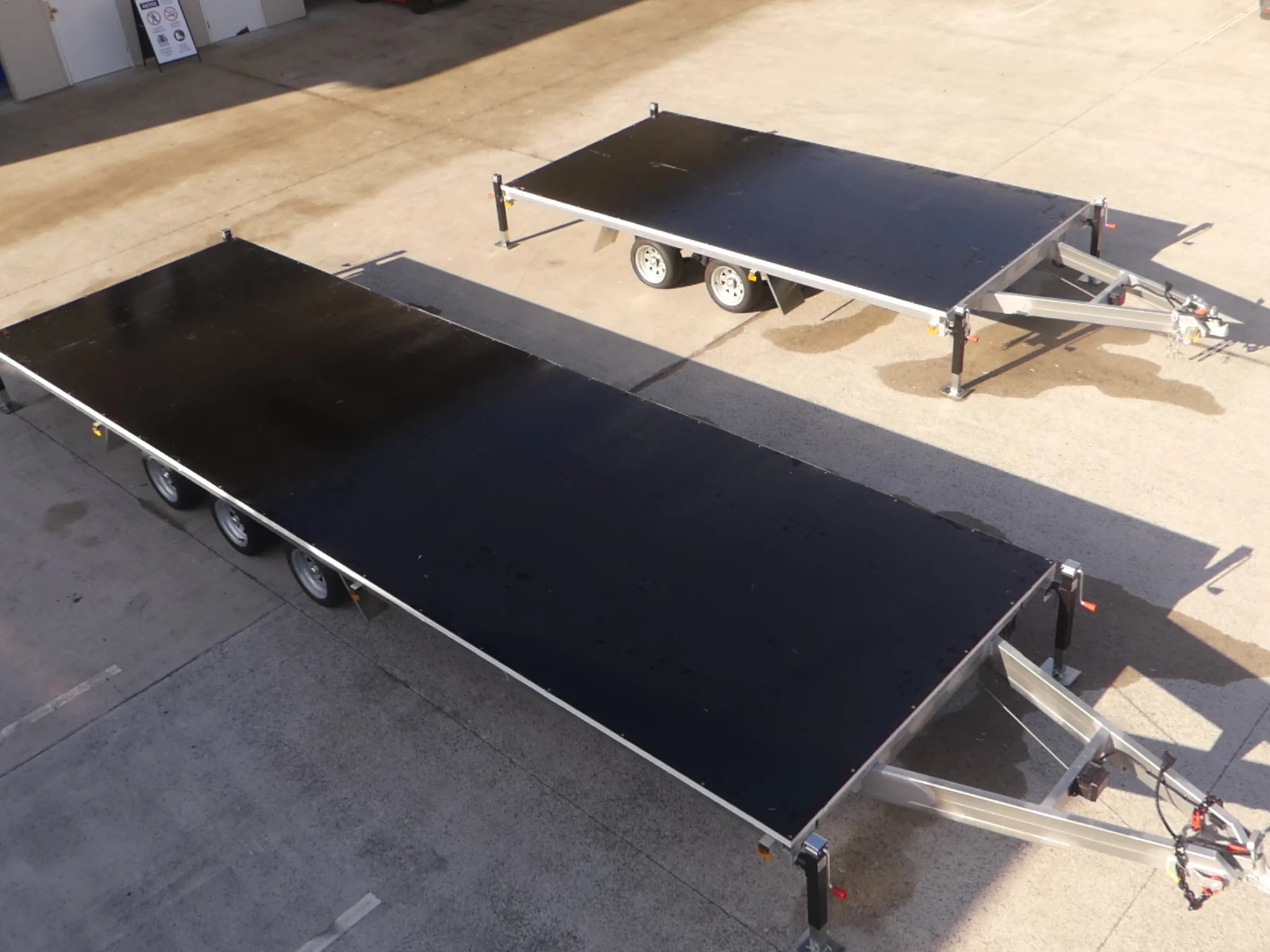

One piece Composite & Insulated Floor (R1.4) Prices including installation
6.0 x 2.4m $3,685 inc. GST
7.2 x 2.4m $4,235 inc. GST
8.0 x 2.4m $4,565 inc. GST
8.4 x 2.4m $4,785 inc. GST
9.0 x 2.4m $5,060 inc. GST
